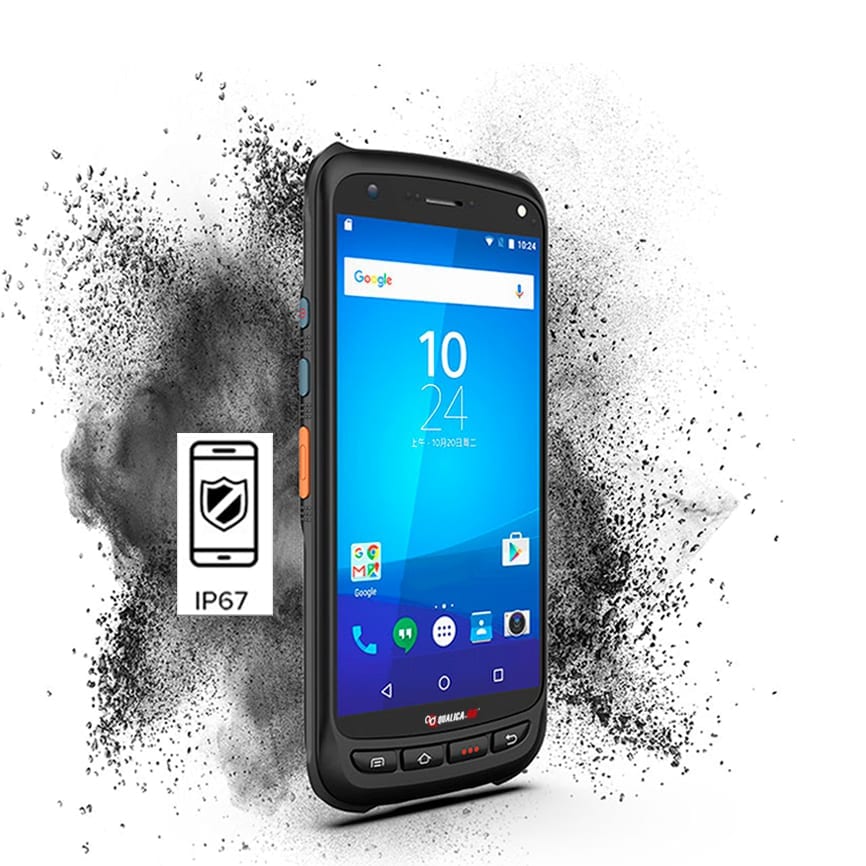

TERMINAL RUGGED QUALICA-RD 70
Professional Android™ mobile device. with RFID reader + Iris recognition
QUALICA-RD 70, this rugged mobile device, based on Android™ 11/9.0 OS, offers an unusual user experience in the most demanding work environments. It has a powerful processor, stable wireless connections, 1D / 2D barcode scanning, NFC – RFID 13.56MHz chip reading, and options such as iris recognition.
It is widely used in transportation, the healthcare sector, logistics, production processes, etc.
Contact us! for more information.
- 2-year warranty
Additional information
Professional Android™ mobile device. with RFID reader + Iris recognition
QUALICA-RD 70, this rugged mobile device, based on Android™ 11/9.0 OS, offers an unusual user experience in the most demanding work environments. It has a powerful processor, stable wireless connections, 1D / 2D barcode scanning, NFC – RFID 13.56MHz chip reading, and options such as iris recognition.
It is widely used in transportation, the healthcare sector, logistics, production processes, etc.
Contact us! for more information.
- 2-year warranty
| Power | Battery: rechargeable Li-ion 4000 mAh Standby time: >300 h. Use time: >12 h. Charging time: 2-3 h. |
|---|---|
| Audio | Speaker, 2 microphones |
| Physical buttons | 4 front keys, 1 power button 2 scanner keys, 1 multifunctional button |
| Camera | Rear camera – 13MP Autofocus with flash Front camera – 5MP |
| Communications | WLAN – IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna WWAN (Europe) – IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna. 3G: 850/900/1900/2100MHz. 4G: B1, B3, B5, B7, B8, B20, B40 WWAN (America) – 2G: 850/900/1800/1900MHz. 3G: 850/900/1700/1900MHz. 4G: B2, B4, B7, B12, B17. WWAN (China) – 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: TDD-LTE: B38, B39, B40, B41 FDD-LTE: B1, B3, B5 WWAN (Others) – Depends on the internet service provider company Bluetooth – 4.0., BLE GNSS – GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Dimensions | 163.8 mm x 79.2 mm x 13.8 mm |
| Programming environment | Operating system Android 11/9.0 SDK – Development kit available Java language Eclipse / Android Studio tool |
| Use environment | Operational temperature -20ºC to 50ºC Storage temperature -40ºC to 70ºC Humidity 5% – 95% relative humidity Drop study – resistant to drops from 1.8m onto cement Repeated drop – 1000 x 0.5 mm (inside) Sealing – IP65 / IP67 according to IEC specifications Desc. electrostatic – ±15 KV (air), ±6 KV (contact) |
| Barcode scanner | 2D image scanner – Zebra SE4710/Honeywell N6603 1D symbologies – UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc. 2D symbologies – PDF417, MicroPDF417, Composite, RSS, TLC39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Interfaces | USB 2.0, Type-C, OTG |
| Iris (optional) | Scanning speed <150ms. Range 20cm – 40cm Margin of error 1/10000000 Protocol ISO/IEC 19794-6, GB/T 20979-2007 |
| NFC | Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 1 cm – 4 cm. |
| Display | 5.2'' IPS FHD Corning Gorilla Glass, multi-touch panel Allows the use of gloves and wet hands |
| Weight | 242 g. |
| Expansion slot | SIM / Micro SD card |
| Performance | CPU – Cortex A53 Quad-Core 1.45GHz RAM + ROM – 2GB + 16GB Tool – Supports MicroSD cards up to 128 GB |
| Sensors | Gravity, light, proximity, vibration motor |
