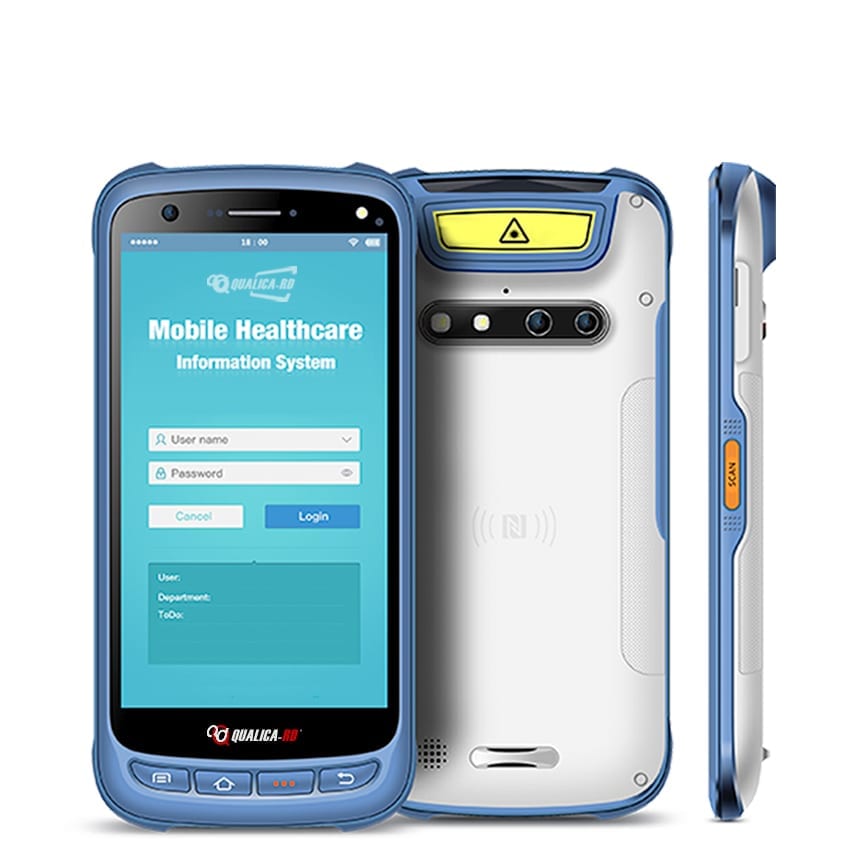

TERMINAL RUGGED QUALICA-RD 70 (T)
Terminal with temperature measurement. Precision error: 0.2 °C.
QUALICA-RD 70T is a high-performance intelligent terminal that has been designed for temperature measurement. It is based on the Android operating system. Its multiple configuration options guarantee excellent operation in any situation where knowing the temperature is necessary.
The location of the temperature sensor, in the upper area of the device, ensures greater comfort, speed and efficiency during data acquisition.
Contact us! for more information.
- 2-year warranty
Additional information
Terminal with temperature measurement. Precision error: 0.2 °C.
QUALICA-RD 70T is a high-performance intelligent terminal that has been designed for temperature measurement. It is based on the Android operating system. Its multiple configuration options guarantee excellent operation in any situation where knowing the temperature is necessary.
The location of the temperature sensor, in the upper area of the device, ensures greater comfort, speed and efficiency during data acquisition.
Contact us! for more information.
- 2-year warranty
| Camera | Rear camera: 13MP autofocus with flash Front camera (optional): 5MP |
|---|---|
| Physical characteristics | Dimensions: 163.8mm x 79.2mm x 13.8 mm Weight: <242 g. Screen: 5.2'' IPS FHD 1920 x 1080 Touch panel: Corning Gorilla Glass, suitable for gloves and hands Card slot: 1 for SIM card, 1 for TF card Interface: USB2.0 Type-C, OTG, supports Type-C headphones Audio: Speaker, 2 microphones Keyboard: 4 front keys, 1 power key, 2 scan keys, 1 key multifunctional Power: Main battery: Li-ion, rechargeable, 4000mAh Standby: more than 300 hours Continuous use: more than 12 hours (depending on the environment) Charging time: 2-3 hours (with adapter and USB cable) Sensors Gravity sensor, lighting, proximity and vibration motor |
| Communication | WLAN IEEE802.11 a/b/g/n/ac, dual 2.4G/5G, internal antenna WWAN (China) 2G: 900/1800 MHz 3G: WCDMA: B1/B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34/B39 4G: B1/B3/B5/B8/B34/B38/B39/B40/B41 WWAN (Europe) 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B1/B3/B5/B7/B8/B20/B40 WWAN (America) 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B2/B4/B7/B12/B17/B25/B66 WWAN (Others) Subject to country ISPs Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Programming environment | SDK: Software development kit available Language: Java Tool: Eclipse / Android Studio |
| Use environment | Operational temperature: -20ºC to 50ºC Storage temperature: -40ºC to 70ºC Humidity 5% – 95% HR (non-condensing) Multiple blows: 1.8 m. (about 20 times) in cement Falls: 1000 drops x 0.5m at room temperature Sealing: IP65/IP67 according to IEC ESD specifications: ±15KV (air) ±6KV (by contact) |
| Barcode scanner | Readers for 1D type: Zebra SE4710/Honeywell N6603 1D symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc. 2D symbologies: PDF417, MicroPDF417, Composite, RSS, TLC39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc |
| Iris (optional) | Speed: < 150s. Range: 20cm – 40cm TFA: 1/10000000 Protocol: ISO/IEC 19794-6，GB/T 20979-2007 *It is an alternative option to the front camera |
| Temperature measurement | Measurement position: On the forehead / surface of the object Measurement method: Non-contact / Infrared Measurement distance: 1 cm – 3 cm Measurement range: Forehead: 32°C to 42.9°C; Target surface: -40°C to 115°C Accuracy: Front: ±0.2°C; Target surface: ±0.5°C; Speed: ≤ 1S Spectral domain: 5.5 -15 μm Resolution: 0.02°C |
| NFC | Frequency: 13.56MHz Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips: M1 card (S50, S70), CPU, NFC, etc. Range: 2 cm – 4 cm |
| Performance | CPU: Cortex-A53 Octa-core 2.5 GHz RAM + ROM: 3 GB + 32 GB Expansion: Supports up to 128 GB for Micro SD card Operating System: Android 8.1; Soti MobiControl, SafeUEM |
