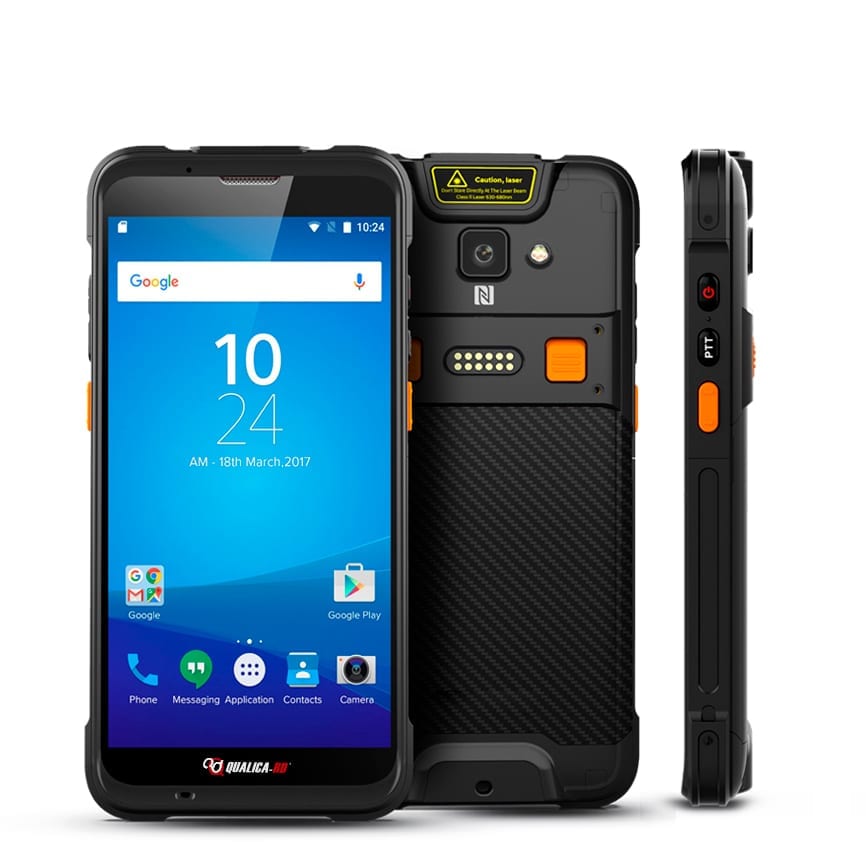

TERMINAL RUGGED QUALICA-RD 66
Rugged terminal with removable battery. RFID – UHF – Barcode
Qualica-RD 66 is a ruggedized mobile terminal with a large screen and wide extensibility. Integrated with Qualcomm Snapdragon™ 662/450 Octa-core, 2.0/1.8 GHz. 5.5-inch high-definition screen. You can connect your phone to the device for complete 1D/2D barcode reading, RFID, UHF, fingerprint recognition, NFC and camera (optional).
This terminal has an interchangeable battery (4420/5200 mAh) so you can change one battery for another in case of need for 24x7 operation.
Contact us! for more information.
- 2-year warranty
Additional information
Rugged terminal with removable battery. RFID – UHF – Barcode
Qualica-RD 66 is a ruggedized mobile terminal with a large screen and wide extensibility. Integrated with Qualcomm Snapdragon™ 662/450 Octa-core, 2.0/1.8 GHz. 5.5-inch high-definition screen. You can connect your phone to the device for complete 1D/2D barcode reading, RFID, UHF, fingerprint recognition, NFC and camera (optional).
This terminal has an interchangeable battery (4420/5200 mAh) so you can change one battery for another in case of need for 24x7 operation.
Contact us! for more information.
- 2-year warranty
| Optional accessories (see Accessories Guide) | Separate handle with one button Handle + battery 5200 mAh, (one button) UHF case + handle (5200 mAh, one button) Wrist strap; rubber stopper Loading cradle |
|---|---|
| Camera | • Rear camera: 13 MP Autofocus with flash |
| Physical characteristics | • Dimensions: 160mm x 76mm x 15.5mm • Weight: 287g (without battery) • Keyboard: 1 power key, 2 scan keys, 2 volume keys, 1 PTT • Battery: – Removable battery: 4300 mAh, gun battery 5200 mAh (optional). Allows QC3.0. and RTC. – Standby: +300h. (main battery) – Continuous use: + 12h. (depending on the environment) – Charging time: 2.5h. (standard adapter and USB cable) • Speaker: Yes • Vibrator: Yes • Microphone: 2 microphones, 1 for noise reduction • Screen: 5.5'' high definition (18:9), IPS LTPS 1440 x 720 • Touch panel: Corning Gorilla Glass. Allows use with gloves and wet hands. • Sensor: gravity, proximity, light, acceleration and vibration sensor • LED: power, charging and status indicator • Card slot: 2 SIM card slots, 1 for TF card • Interface: USB 3.0, Type-C, OTG |
| Barcodes (optional) | • 2D scanner: Zebra: SE4710/SE2100; Honeywell: N6603 • 1D Symbology: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. • 2D symbology: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Communication | • WLAN: – Allows 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6 – Fast roaming: PMKID storage, 802.11r, OKC – Operator channels: 2.4G (channel 1 ~ 13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165). According to local regulations. – Security and encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK — EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc. • WWAN (Europe, Asia): – 2G: 850/900/1800/1900 MHz – 3G: CDMA EVDO: BC0 – WCDMA: 850/900/1900/2100MHz – TD-SCDMA: A/F(B34/B39) – 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 • WWAN (America): – 2G: 850/900/1800/1900MHz – 3G: 850/900/1900/2100MHz – 4G: B2/B4/B5/B7/B12/B17/B38 • Vo-LTE: Allows Vo-LTE HD video calls • Bluetooth: Bluetooth 4.2/4.1 + HS /4.0/3.0 + HS/2.1 + EDR • GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| Development environment | • Operating system: Android 11/9.0; GMS, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, enables SafeUEM • SDK: Software Development Kit Qualica-RD • Language: Java • Tool: Eclipse / Android Studio |
| Use environment | • Use temperature: -20ºC to 50ºC • Storage temperature: -40ºC to 70ºC • Humidity: 5% – 95% without condensation • Drop resistance; Multiple 1.8 m (<20 times) on cement in temperature range. Multiple 2.4 m (<20 times) on cement in temperature range with rubber stop • Shock resistance: 1000 x 0.5 m at room temperature • Sealing: IP65 according to IEC certification • Discharge: ±15 KV air flow, ±8 KV conductive discharge |
| NFC | • Frequency: 13.56 MHz • Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. • Chips: M1 card (S50, S70), CPU card, NFC tag, etc. • Range: 2 cm – 4 cm |
| Performance | • Qualcomm 1.8 GHz Octa-core CPU • RAM+ROM 2 GB + 16 GB / 3 GB + 32 GB / 4 GB + 64 GB • Micro SD Card Expansion 128 GB |
| UHF1 (Optional) | • Engine: CM2000-1 module based on Impinj Indy R2000 • Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz • Protocol: EPC C1 GEN2 / ISO18000-6C • Antenna: Circular polarized antenna (4 dBi) • Power: 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm for Latin America, etc.) • Reading range >25 m (indoor); >15 m (exterior, Impinj MR6 tag) • Reading speed: 900 + tags/s. • Communication: PIN connector / Bluetooth *Ranges will depend on the use environment |
