TERMINAL RUGGED QUALICA-RD 61

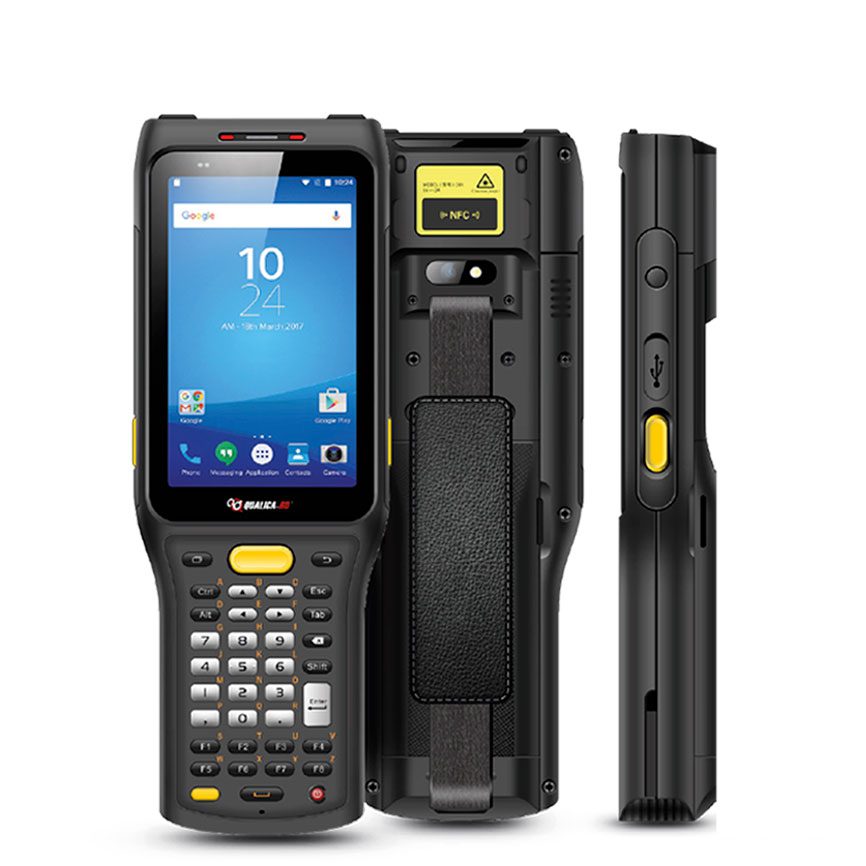

Name: TERMINAL RUGGED QUALICA-RD 61
Brand: Qualica-RD

Professional mobile terminal. RFID, UHF and Barcode reader.

QUALICA-RD 61 this terminal belongs to the new generation of ruggedized terminals with the strongest performance on the market.

Its Android 11/9.0 OS and Qualcomm Octa-Core processor, its QWERTY numeric keyboard, its wide range of accessories and its multiple reading options make it the most complete solution for applications in logistics, storage, fleet, etc.

2-year warranty

Request information about this model View technical datasheet

Additional information

Professional mobile terminal. RFID, UHF and Barcode reader.

QUALICA-RD 61 this terminal belongs to the new generation of ruggedized terminals with the strongest performance on the market.

2-year warranty

Optional accessories	• One-button separate grip • Grip + battery (5200 mAh) • UHF back clip + grip (5200 mAh) • Wrist strap. Loading cradle
Camera	Rear camera – 13MP Autofocus with flash
Physical characteristics	• Dimensions: 202.0 mm x 72.5 mm x 32.0 mm • Weight: 390 g. • Keyboard: – 37 keys (main) – 2 SCAN + 2 volume + 1 user (side) • Battery: – Removable 5200 mAh, supports QC3.0 and RTC. – Standby: more than 300 hours (main battery only). – Continuous use: more than 12 hours. (depending on environment). – Charging time: 2.5 h (adapter cable and USB) • Speaker: Supported • Vibrator: 2 units, 1 for sound reduction • Microphone: 4'' high definition, IPS LTPS 800 x 480 • Screen: Suitable for gloves and wet hands • Touch panel: gravity, proximity, light and accelerometer • Sensor: sensor, vibrator, motor • LED indicator: Power, charging, status indicator • Slot card: 1 SIM card slot and 1 for TF • Interfaces: USB 3.0, Type-C, OTG, extended
Communication	• WLAN: Supports 802.11 a/b/g/n/ac • WWAN (Europe, Asia): 2G: 850/900/1800/1900 MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100 MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 • WWAN (Americas): 2G: 850/900/1800/1900MHz3G:z 850/900/1900/2100MHz4G: B2/ B4/B5/B7/B12/B17/B38 • Bluetooth: Bluetooth 4.2/4.1 + HS/4.0/3.0 + HS/2.1 + EDR • GNSS: GPS/AGPS, GLONASS, BeiDou, internal antenna
Programming environment	• Operating system: Android 11/9.0; GMS, Android Enterprise, Zero-Touch, FOTA etc. • SDK: Software development kit available • Language: Java • Tool: Eclipse / Android Studio
Use environment	• Operational temperature: -20ºC to 50ºC • Storage temperature: -40ºC to 70ºC • Humidity: 5% to 95% relative humidity (non-condensing) • Drip: Multiple 1.8m drops (20 times) to paved ground over entire operating temperature range • Drops: 1000 x 0.5m at room temperature • Sealing: IP65 to IEC specifications • ESD: ESD at ±15 KV (air), ±8 KV (contact)
Scanner and barcode (optional)	• 2D scanner: Zebra: SE4710/SE4750/SE4850 • 1D symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 • Symbologies 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
NFC	• Frequency: 13.56MHz • Protocols: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. • Chips: M1 card (S50, S70), CPU card, NFC tags, etc. • Reading range: 2 cm. – 4 cm.
Performance	• CPU: Qualcomm 1.8 GHz Octa-core • RAM + ROM: 2GB + 16GB / 3GB + 32GB • Expansion: supports up to 128 GB MICRO SD card
UHF (optional)	• Motor: CM2000-1 Module based on Impinj Indy R2000 • Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz • Protocol: EPC C1 GEN2 / ISO18000-6C • Antenna: Circular polarized antenna (4 dBi) • Power: – 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W – Optional (33 dBm, for Latin America, etc.) • L/E range: > 25 m (indoor); > 15 m (exterior, Impinj MR6 tag) • Reading range: >200 tags/s • Communication mode: connector pin * The reading range and range depend on the environmental conditions
