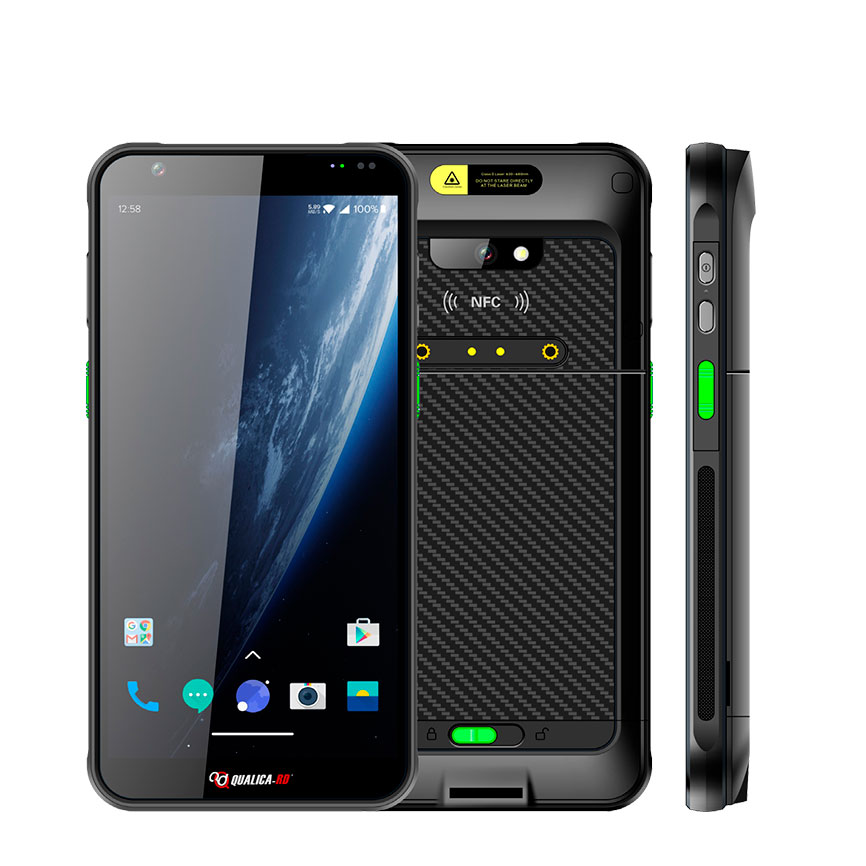

TERMINAL RUGGED QUALICA-RD 50
Rugged Industrial Terminal with Android 12 and 5G
Qualica-RD 50 is our newly launched high-performance 5G mobile computer, supporting N1/N3/N8/N28/N41/N78/N7 frequencies. The high-end configuration includes advanced Android 12, Qualcomm Snapdragon™ 480 Octa-core processor, 2.0GHz, 4GB RAM and 64GB ROM and optional ultra-large memory. It integrates a barcode scanner, NFC, dual camera, double microphone and multiple wireless data connections, as well as a 6-inch HD screen, interchangeable 5000 mAh battery and IP67 sealing. It can bring a new level of profitability to a wide range of sectors, such as retail, logistics and warehousing.
Contact us! for more information.
- 2-year warranty
Additional information
Rugged Industrial Terminal with Android 12 and 5G
Qualica-RD 50 is our newly launched high-performance 5G mobile computer, supporting N1/N3/N8/N28/N41/N78/N7 frequencies. The high-end configuration includes advanced Android 12, Qualcomm Snapdragon™ 480 Octa-core processor, 2.0GHz, 4GB RAM and 64GB ROM and optional ultra-large memory. It integrates a barcode scanner, NFC, dual camera, double microphone and multiple wireless data connections, as well as a 6-inch HD screen, interchangeable 5000 mAh battery and IP67 sealing. It can bring a new level of profitability to a wide range of sectors, such as retail, logistics and warehousing.
Contact us! for more information.
- 2-year warranty
| Physical characteristics | – Dimensions: 161.0 x 77.8 x 15.5 mm / 6.34 x 3.06 x 0.61 in. – Weight: 280g-288g / 9.88oz-10.16oz. (device with battery) – Keyboard: Power key, 2 navigation keys, volume keys (+/-), 1 multifunctional key – Battery: Removable main battery 5000 mAh, QC3.0 and RTC compatible – Screen: 6-inch high-definition screen (18:9), 1440 x 720 – Touch screen: Corning Gorilla Glass, multi-touch panel, compatible with gloves and wet hands – Sensor: Sensor G, proximity sensor, light sensor, geomagnetic sensor, gyroscope – Notifications: Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver – Card slot: 1 for SIM card, 1 for SIM card or TF – Interface: USB type C, USB 3.1, OTG |
|---|---|
| Performance | – CPU: Octa-core, 2.0GHz – RAM+ROM: 4GB + 64GB / 6GB + 128GB – Expansion: Supports TF cards up to 256 GB |
| Development environment | – Operating System: Android 12; GMS&AER; Committed support for the future, update to Android 14 pending viability – SDK: Qualica-RD Software – Language: Java – Tool: Eclipse / Android Studio |
| User environment | – Operating Temperature: -4°F to 122°F / -20oC to +50oC – Storage Temperature: -40oF to 158 oF / -40oC to +70oC – Humidity: 5% RH – 95% RH without freezing – Shockproof specifications: Multiple 1.5 m / 4.92 ft drops (at least 20 times) onto concrete. All range of operating temperatures. MIL-STD-810H (SGS Test): Multiple 1.5m drops (at least 20 times) onto the plate across the entire temperature range – Drop specifications: 1000 x 0.5m / 1.64ft. drops at ambient temperature – Sealing: IP67 to IEC waterproof specifications – ESD: ±15 KV air discharge, ±8 KV conductive discharge |
| Communication | -Vo-LTE: Supports Vo-LTE HD video calls -Bluetooth: Bluetooth 5.1 – GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna – WLAN: Supports 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; – Fast roaming: PMKID Cache, 802.11r, OKC Operating channels: 2.4G (channel 1-13). – 5G (channels 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. WWAN – 2G: 850/900/1800/1900 MHz – 3G: 850/900/1900/2100MHz – 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ – B41 – 5G: N1/N3/N8/N28/N41/N78/N79 |
| Data collection | -Rear camera: 16MP Autofocus with flash -Front camera: 5MP |
| NFC | -Frequency: 13.56 MHz -Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. -Chips Card: M1 (S50, S70), CPU card, NFC tags, etc. -Reading range: 2-4 cm |
| Barcode scanning (optional) | -2D Zebra Scanner: SE4710; CM60; -1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. -2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Optional accessories | -USB cable, adapter, charging base, durable rubber case, etc. *See details in the accessories guide |
