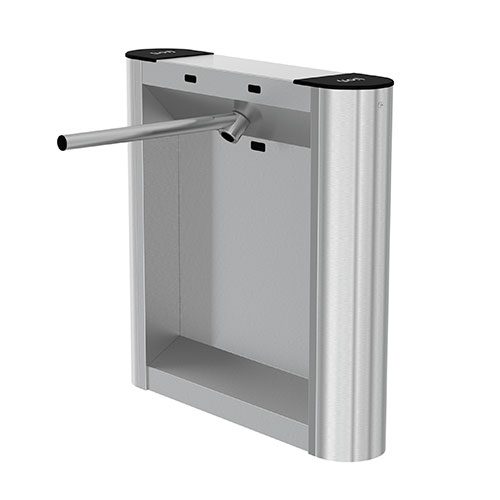

TRIPOD T-HS
Single arm turnstile. Direct Drive magnetic motor.
TRIPOD T-HS revolutionizes the market by introducing a new concept that prioritizes comfort, speed and design with a lower technological impact. It has a motor with a patented clutchless direct magnetic drive technology, which enables millions of passes. European manufacturing and maximum quality that enable silent operation, no maintenance required, resistance to extreme temperatures and a longer useful life than its direct high-end competitors.
- 2-year warranty
- Suitable for indoor and outdoor use
Additional information
Single arm turnstile. Direct Drive magnetic motor.
TRIPOD T-HS revolutionizes the market by introducing a new concept that prioritizes comfort, speed and design with a lower technological impact. It has a motor with a patented clutchless direct magnetic drive technology, which enables millions of passes. European manufacturing and maximum quality that enable silent operation, no maintenance required, resistance to extreme temperatures and a longer useful life than its direct high-end competitors.
- 2-year warranty
- Suitable for indoor and outdoor use
| Dimensions | • Height: 990 mm. • Length: 990 mm. • Width: 210 mm. • Passage width: 570 mm. (max.) |
|---|---|
| Standard equipment | • Advanced Direct Drive (MDD) magnetic drive system. • Magnetic tooth brake. • Optical sensors. • Anti-panic system with automatic reset. • Communication interface for various identification systems. Input / Output: RS485 / Ethernet / USB / Others. • Power input (low voltage) 13.8 V DC. Optional: 24/230 V AC. |
| Materials and Finishes | • Cabinet: polished stainless steel AISI 304. • Top cover: polished stainless steel AISI 304. • Arm: polished stainless steel tube with 40 mm diameter. • Optional surface finishes (polished, satin stainless steel / blackened steel / bronze / etc.). |
| Options and accessories | • Signaling equipment. • Integrated reader support. • Access Light (mounted on top cover). • Remote control panel or touch screen. |
| Security | • Individual step detection sensors. • Anti-fraud on top and bottom. |
