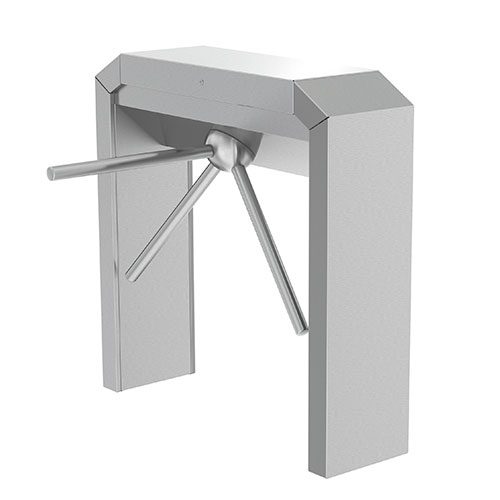

TRIPOD T-BA
Modern, safe and effective. The Universal turnstile.
TRIPOD T-BA is a universal tripod with a multitude of applications. Its modern design, the efficiency and safety of its operation and the high quality of its manufacturing process are its hallmarks. It has a high-quality stainless steel structure and a careful design, which facilitates integration into any environment.
Modern control electronics allow easy incorporation into existing access control systems, allowing communication with different identification and signaling devices.
- Suitable for indoor and outdoor use (AISI 316) ( -10 ° up to + 50 ° C)
- 2-year warranty
Additional information
Modern, safe and effective. The Universal turnstile.
TRIPOD T-BA is a universal tripod with a multitude of applications. Its modern design, the efficiency and safety of its operation and the high quality of its manufacturing process are its hallmarks. It has a high-quality stainless steel structure and a careful design, which facilitates integration into any environment.
Modern control electronics allow easy incorporation into existing access control systems, allowing communication with different identification and signaling devices.
- Suitable for indoor and outdoor use (AISI 316) ( -10 ° up to + 50 ° C)
- 2-year warranty
| Dimensions | • Height: 1100 mm. • Length: 1090 mm. • Width: 320 mm. • Passage width: 550 mm. |
|---|---|
| Standard equipment | • Fail Safe: safety unlocking in case of power failure. • Communication interface for various identification systems (Input / Output: RS485 / Ethernet / USB / Others). • Bidirectionality. • Electronic operation. • 13.8 V DC power input. Optional: 24/230 V AC. |
| Materials and Finishes | • Cabin: brushed stainless steel. • Top cover: brushed stainless steel. • Arm: brushed stainless steel tube with 40 mm diameter. • Optional surface finishes: Polished steel, black lacquered intermediate cabin. |
| Options and accessories | • Signaling equipment. • Slot for proximity reader integration. • Access Light (mounted on top cover). • Remote control panel or touch screen. |
| Security | • Anti-fraud sensors to detect passage over or under. |
