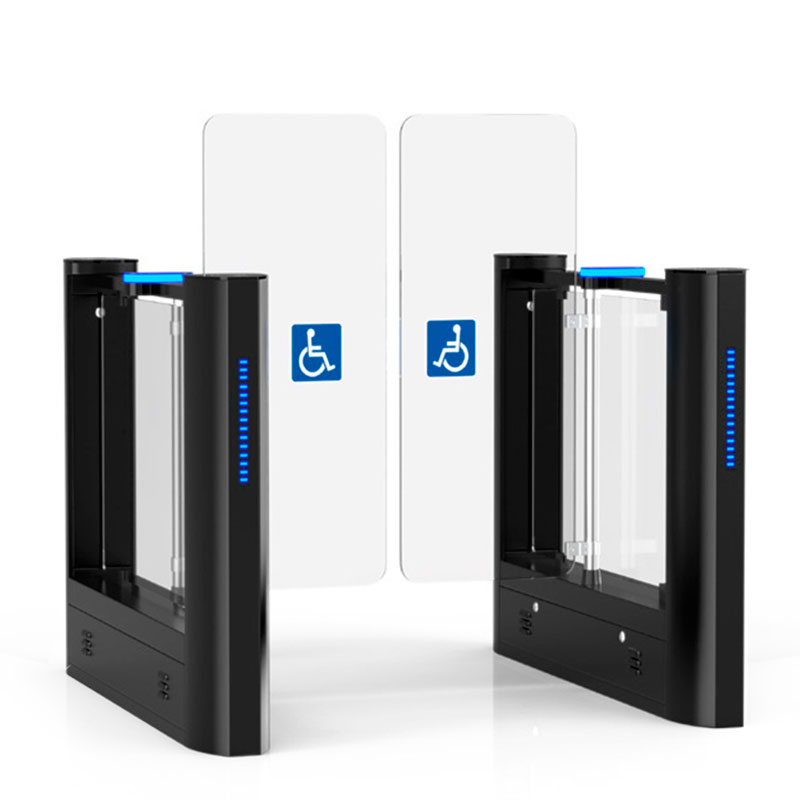

Qualica-RD ORION
High-speed turnstile with blades of different heights and thin structure
Qualica-RD ORION. It is a turnstile made of high quality steel with a high-end black painting process. It incorporates a panel with a tempered glass RFID card reader and has an attractive blue LED strip.
The glass arm can be raised up to 1400mm for a high security control that prevents unauthorized people from entering. The passage width can reach 600mm for the normal passage, and can support a 900mm arm for the wide passage: the wheelchair or pedestrian with luggage.
- 3-year warranty
- 6 pairs of sensors (standard)
Additional information
High-speed turnstile with blades of different heights and thin structure
Qualica-RD ORION. It is a turnstile made of high quality steel with a high-end black painting process. It incorporates a panel with a tempered glass RFID card reader and has an attractive blue LED strip.
The glass arm can be raised up to 1400mm for a high security control that prevents unauthorized people from entering. The passage width can reach 600mm for the normal passage, and can support a 900mm arm for the wide passage: the wheelchair or pedestrian with luggage.
- 3-year warranty
- 6 pairs of sensors (standard)
| Certification | CE compliance, ROHS |
|---|---|
| Main structure material | Steel structure with sealing system |
| Card Panel Material | Tempered glass |
| Arm material | Transparent plexiglass (standard) or Tempered glass (optional) |
| Dimensions | 1400 * 185 * 990mm |
| Net weight | 60 kg/unit (single core), 75 kg/unit (dual core) |
| Step width | 600mm (standard), 900mm (reduced mobility) |
| Arm height | 1200mm (standard), 900mm-1400mm (optional) |
| Water resistant | IP65 |
| Step direction | Unidirectional and Bidirectional |
| MCBF | 15 million |
| Power supply | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Power consumption | 40-70W |
| Operating temperature | -15 °C to 70 °C |
| Operating humidity | 0 ~ 95% (no freezing) |
| Work environment | Indoor / Exterior |
| Flow | 35 people per minute |
| LED indicator | Single Blue LED Strip (front + top) |
| Infrared sensor | 6 pairs (standard) |
| Emergency | Opening Automatic opening of the arm when the power is cut |
| Communication | Dry contact, relay signal, RS485 |
