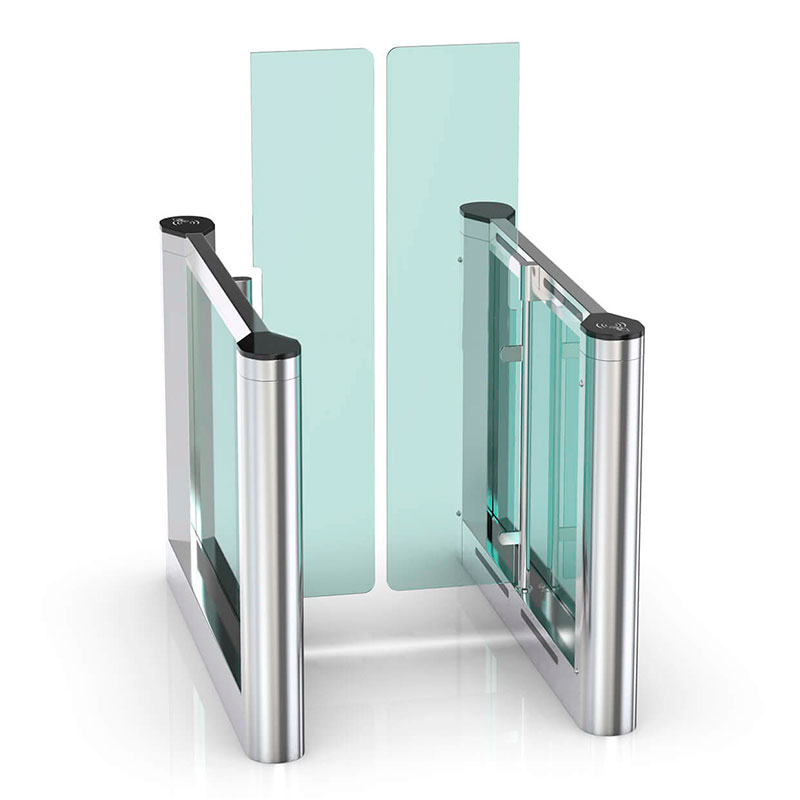

Qualica-RD NAOS
Long-lasting performance and fast response
Qualica-RD NAOS. Speed turnstile with the advantage that the glass arm can be raised to 900-1800m (maximum) for high safety control, and the passage width can reach 550-900mm, which is suitable for people with wheelchairs, strollers or pedestrians with luggage.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. Ideal for both indoors and outdoors. Suitable for any high-level site, such as government building, chamber, bank, airport, stadium, etc.
- 3-year warranty
- 6 pairs of sensors (standard)
Additional information
Long-lasting performance and fast response
Qualica-RD NAOS. Speed turnstile with the advantage that the glass arm can be raised to 900-1800m (maximum) for high safety control, and the passage width can reach 550-900mm, which is suitable for people with wheelchairs, strollers or pedestrians with luggage.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. Ideal for both indoors and outdoors. Suitable for any high-level site, such as government building, chamber, bank, airport, stadium, etc.
- 3-year warranty
- 6 pairs of sensors (standard)
| Frame Material | 304 stainless steel + arm plexiglass |
|---|---|
| Arm material | Transparent plexiglass |
| Dimensions | 1440 * 192 * 1000mm |
| Net weight | 75kg/unit (single core), 85kg/unit (dual core) |
| Step width | 550 mm (standard), 900 mm (special pitch) |
| Glass height | 900-1800mm (optional) |
| Step direction | Unidirectional / Bidirectional |
| MCBF | 15 million |
| Power supply | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Power consumption | 40W |
| Operating temperature | -20 °C to 75 °C |
| Humidity Operation | 0 ~ 95% (without condensation) |
| Flow rate | 40-45 people per minute |
| LED indicator | LED indicators on top |
| Infrared sensor | 6 pairs (standard) |
| Emergency | Automatic arm open when turned off |
| Communication | Dry contact, relay signal, RS485 |
