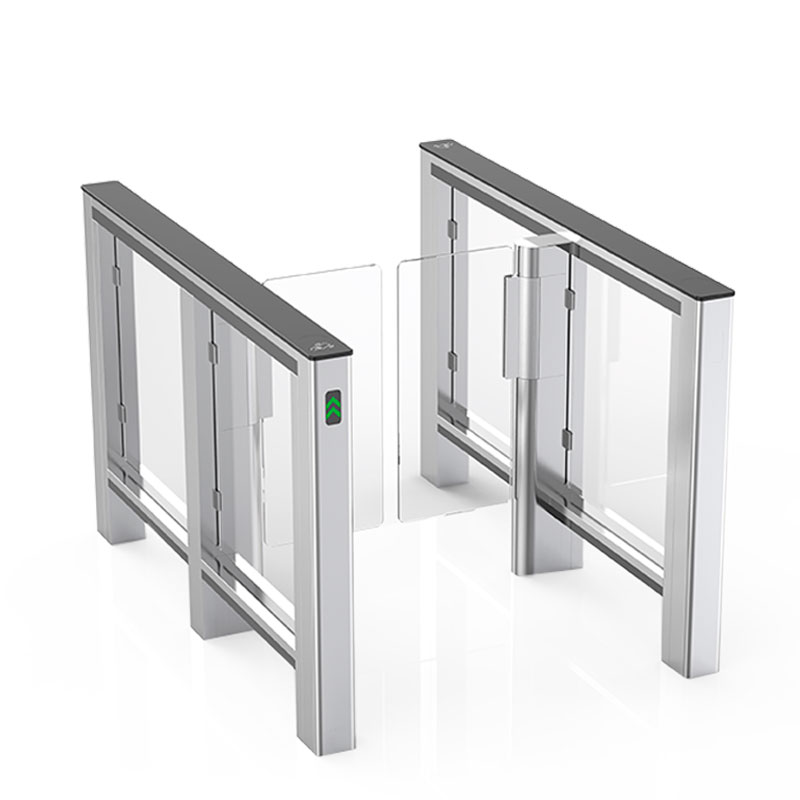

Qualica-RD DELTA
The turnstile with the highest opening and closing speed: 0.2 seconds (adjustable)
The Qualica-RD DELTA turnstile. Equipped with 16 pairs of sensors, it is one of the quietest and most robust bidirectional turnstiles on the market, due to a technology that guarantees an average of 15 million passage cycles without compromising the brushless mechanism. Passage width from 600 mm to 900 mm and recommended for both indoors and outdoors.
It is, together with our VEGA model, an ultra-fast bidirectional high-end turnstile with a throughput of up to 55 people per minute. It opens in an emergency and includes automatic reset, LED indicators, an alarm and anti-intrusion protection. Ideal for access to buildings, museums, football stadiums, administrations, cinemas, gyms, etc.
- 3-year warranty
- Possibility of choosing finishes on the upper part (stainless steel or acrylic)
- 16 pairs of sensors (8 top and bottom)
Additional information
The turnstile with the highest opening and closing speed: 0.2 seconds (adjustable)
The Qualica-RD DELTA turnstile. Equipped with 16 pairs of sensors, it is one of the quietest and most robust bidirectional turnstiles on the market, due to a technology that guarantees an average of 15 million passage cycles without compromising the brushless mechanism. Passage width from 600 mm to 900 mm and recommended for both indoors and outdoors.
It is, together with our VEGA model, an ultra-fast bidirectional high-end turnstile with a throughput of up to 55 people per minute. It opens in an emergency and includes automatic reset, LED indicators, an alarm and anti-intrusion protection. Ideal for access to buildings, museums, football stadiums, administrations, cinemas, gyms, etc.
- 3-year warranty
- Possibility of choosing finishes on the upper part (stainless steel or acrylic)
- 16 pairs of sensors (8 top and bottom)
| Communication | Dry contact, relay signal, RS485 |
|---|---|
| Frame Material | 304 stainless steel + Plexiglass arm + Tempered glass on the side |
| Arm material | Transparent plexiglass |
| Dimensions | 1500 * 120 * 1020mm |
| Net weight | 80kg/unit (single), 100kg/unit (double) |
| Step width | 600mm (standard), 900mm (reduced mobility) |
| Step direction | Monodirectional and Bidirectional |
| MCBF | 15 million |
| Power supply | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Power consumption | 90-100W |
| Operating temperature | -20 °C – 75 °C |
| Operating humidity | 0 ~ 95% (without condensation) |
| Work environment | Indoor / Exterior |
| Flow of people | 45-55 people per minute |
| LED indicator | Two LED indicators on the top |
| Infrared sensor | 16 pairs (8 top and bottom) |
| Emergency | Automatic opening of the arm when turned off |
