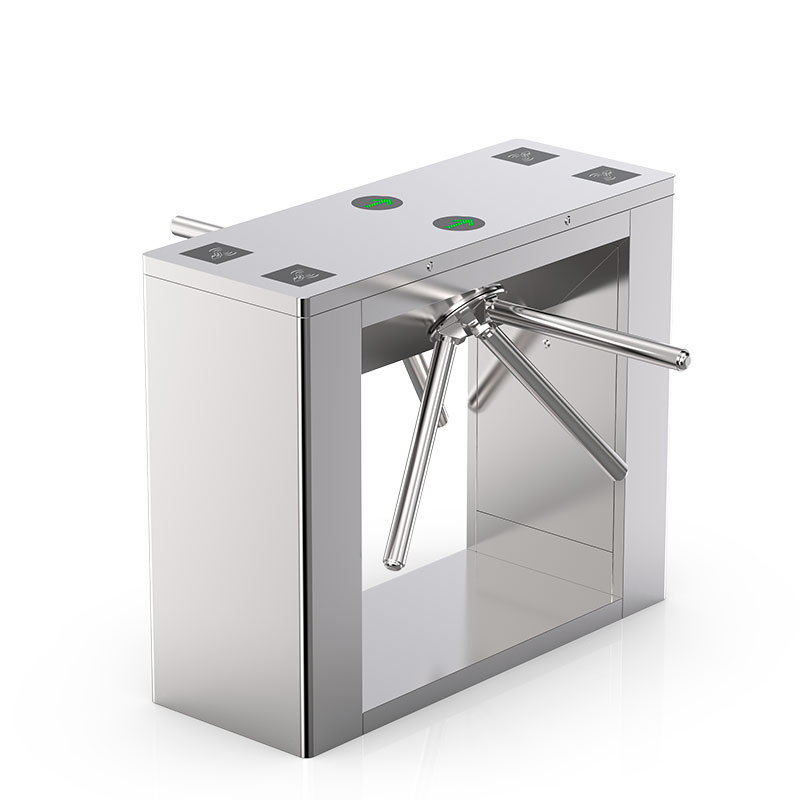

Qualica-RD ANTARES DUO
Dual core tripod turnstile (two lanes)
Qualica-RD ANTARES DUO. Tripod with two rotating arms, housed in a single structure, with two 550 mm aisles, offers greater traffic efficiency and space-saving installation.
The color can be customized based on the installation environment, the material is optional. The dimensions can be customized according to your needs and the logo can be customized. Easy to install and maintain. Fire safety requirements, arms lower automatically.
- 3-year warranty
Additional information
Dual core tripod turnstile (two lanes)
Qualica-RD ANTARES DUO. Tripod with two rotating arms, housed in a single structure, with two 550 mm aisles, offers greater traffic efficiency and space-saving installation.
The color can be customized based on the installation environment, the material is optional. The dimensions can be customized according to your needs and the logo can be customized. Easy to install and maintain. Fire safety requirements, arms lower automatically.
- 3-year warranty
| Certifications | CE compliance, ROHS, FCC |
|---|---|
| Structure material | 304 / 316 stainless steel (optional) |
| Dimensions | 1200 * 460 * 1000mm |
| Net Weight | 90kg/unidad |
| Step width | 550mm + 550mm |
| Step direction | Unidirectional and Bidirectional |
| MCBF | 10 million |
| Power | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Electrical consumption | 20W |
| Operating temperature | -15 °C to 60 °C |
| Operating humidity | 0 ~ 95% (no freezing) |
| Work environment | Indoor / Exterior |
| Flow | 35 +35 people per minute |
| LED indicator | LED indicators at the top and front |
| Communication | Dry contact, relay signal, RS485 |
| Emergency | Arms will automatically lower in case of blackout |
| Flexibility | It is integrated with any access control |
