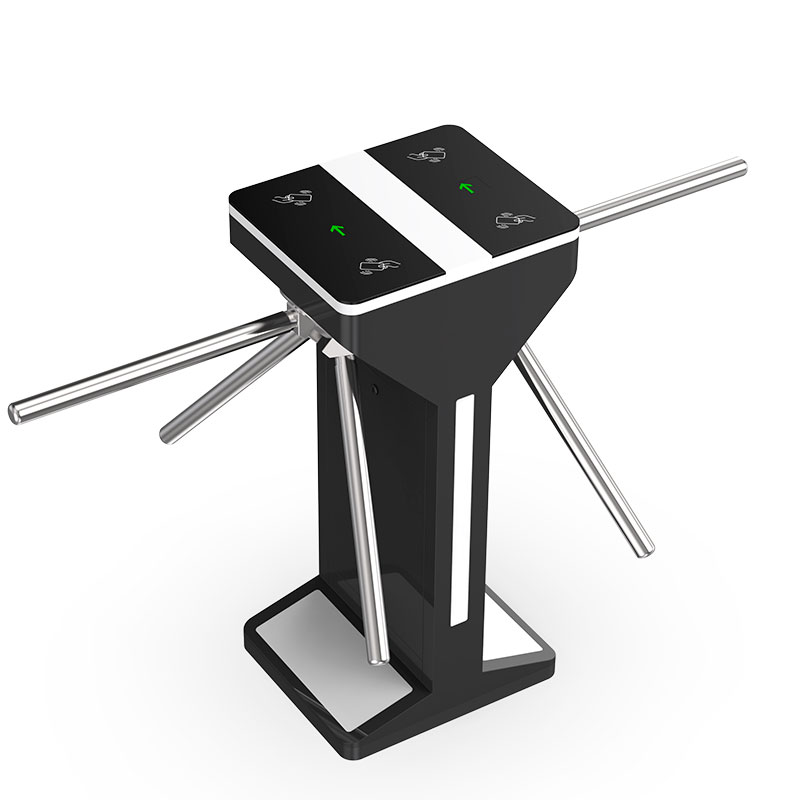

Qualica-RD ANDROMEDA 50D
Double lane tripod for access control in small spaces
Qualica-RD ANDROMEDA 50D is a tripod with a double rotating arm with a passage width of 550mm for each lane, allowing the passage of only one person at a time. Bidirectional or unidirectional operation. Its black and white design is elegant for use in high-end applications.
The logo, appearance color and dimensions are can be customized based on the installation environment. Ideal for both outdoors and indoors. Easy to install and maintain. Low noise level. Low power consumption. Waterproof IP65 level.
- 3-year warranty
- Customizable
- Interior exterior
Additional information
Double lane tripod for access control in small spaces
Qualica-RD ANDROMEDA 50D is a tripod with a double rotating arm with a passage width of 550mm for each lane, allowing the passage of only one person at a time. Bidirectional or unidirectional operation. Its black and white design is elegant for use in high-end applications.
The logo, appearance color and dimensions are can be customized based on the installation environment. Ideal for both outdoors and indoors. Easy to install and maintain. Low noise level. Low power consumption. Waterproof IP65 level.
- 3-year warranty
- Customizable
- Interior exterior
| Certifications | CE compliance, ROHS, FCC |
|---|---|
| Frame Material | 304 / 316 stainless steel (optional) + white and baked varnish black + tempered glass on side |
| Arm material | 304 / 316 stainless steel (optional) |
| Dimensions | 470 * 400 * 1000mm |
| Net weight | 60kg/unidad |
| Step width | 550mm + 550mm |
| Step direction | Unidirectional and Bidirectional |
| MCBF | 10 million |
| Power | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Power consumption | 40W |
| Operating temperature | -20 °C to 75 °C |
| Operating humidity | 0 ~ 95% (no freezing) |
| Work environment | Indoor / Exterior |
| Flow | 35+35 people per minute |
| LED indicator | Two LED indicators on the top |
| Communication | Dry contact, relay signal, RS485 |
| Emergency | The arms will be lowered automatically in the event of a blackout |
| Flexibility | It is integrated with any access control |
