Qualica-RD ALHENA
The height of the glass can be extended to 1.8 meters for greater security.

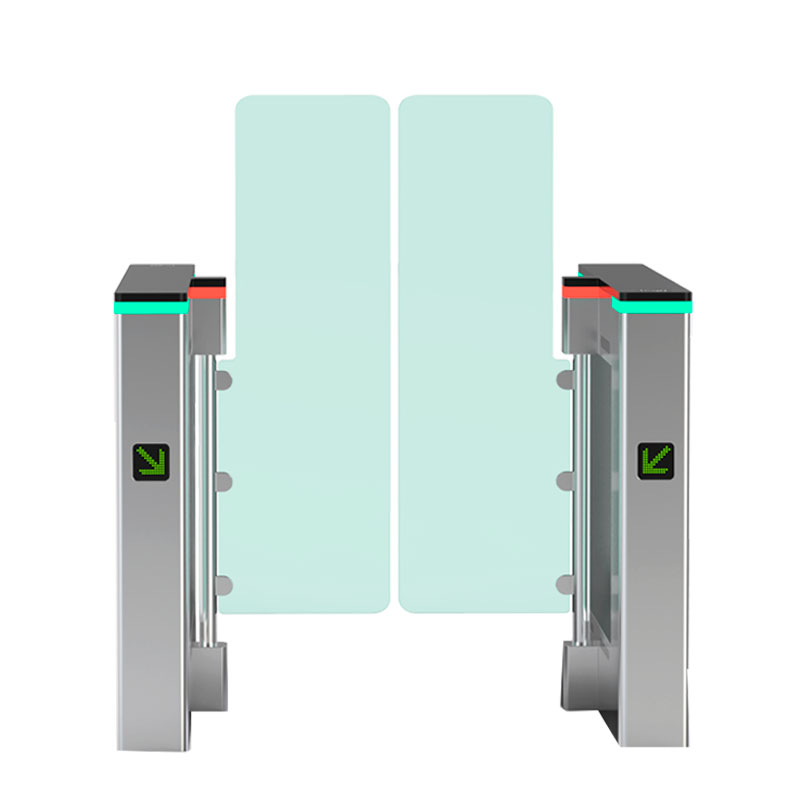

Qualica-RD ALHENA. Access control turnstile for pedestrian entry or exit in restricted areas, both directions. Brushed stainless steel body, robust, anti-rust, waterproof and durable.
It has the fastest opening and closing speed rate: 0.2 seconds (adjustable). The passage width reaches 600-1140mm, which is suitable for people with reduced mobility or pedestrians with bulky luggage. It is ideal for areas with general foot traffic; parks, schools, factories, libraries, cinemas, gyms, etc.
- 3-year warranty
- 6 pairs of sensors
Additional information
The height of the glass can be extended to 1.8 meters for greater security.
Qualica-RD ALHENA. Access control turnstile for pedestrian entry or exit in restricted areas, both directions. Brushed stainless steel body, robust, anti-rust, waterproof and durable.
It has the fastest opening and closing speed rate: 0.2 seconds (adjustable). The passage width reaches 600-1140mm, which is suitable for people with reduced mobility or pedestrians with bulky luggage. It is ideal for areas with general foot traffic; parks, schools, factories, libraries, cinemas, gyms, etc.
- 3-year warranty
- 6 pairs of sensors
| Structure material | 304 stainless steel + transparent plexiglass arm + tempered glass on the side |
|---|---|
| Dimensions | 1600 * 160 * 1000mm |
| Net weight | 75kg/unit (single core), 85kg/unit (dual core) |
| Step width | 600mm (standard), 1140mm (wheelchair) |
| Arm height | 900-1400mm (Max.) |
| Step direction | Unidirectional and Bidirectional |
| MCBF | 15 million |
| Energy supply | AC220V/110V, 50/60Hz |
| Operating voltage | 24V DC |
| Power consumption | 40W |
| Operating temperature | -20 °C – 75 °C |
| Operating humidity | 0 ~ 95% (without condensation) |
| Work environment | Indoor / Exterior |
| Flow | 40-45 people per minute |
| LED indicator | LED indicators at the top |
| Infrared sensor | 6 pairs |
| Communication | Dry contact, relay signal, RS485 |
