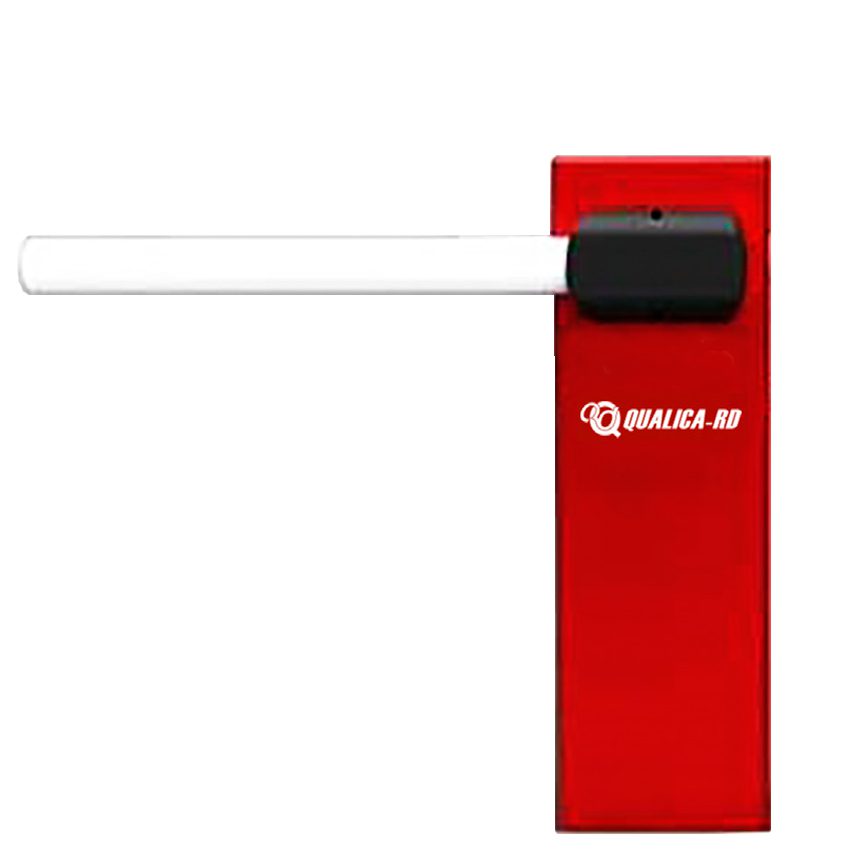

QRD 60/80 PLUS
Control of vehicles in restricted accesses. Very intense traffic. 230 Vac gear motor.
The QRD 60 / 80 PLUS barrier is designed for the control of vehicles in restricted accesses with very intense traffic.
Outer furniture in steel with cataphoresis treatment painted in polyester. 230 Vac gear motor in oil bath and encoder. Programmable control panel with deceleration functions at the end of travel and obstacle detection system. It incorporates manual unlocking for emergency maneuver.
- Optionally you can install an oval arm with LED lighting, up to 8 m.
Additional information
Control of vehicles in restricted accesses. Very intense traffic. 230 Vac gear motor.
The QRD 60 / 80 PLUS barrier is designed for the control of vehicles in restricted accesses with very intense traffic.
Outer furniture in steel with cataphoresis treatment painted in polyester. 230 Vac gear motor in oil bath and encoder. Programmable control panel with deceleration functions at the end of travel and obstacle detection system. It incorporates manual unlocking for emergency maneuver.
- Optionally you can install an oval arm with LED lighting, up to 8 m.
| Power | 230 Vac; 50 60Hz |
|---|---|
| Cycles / day | 2,000 c/d |
| End of stroke deceleration | Adjustable microswitches |
| Investment per impact | Yes |
| Arm length | QRD 60 PLUS: Oval arm H118 (6 m), Round arm D80 (6 m) QRD 80 PLUS: Oval arm H118 (8 m) |
| Engine | 230 Vac (self-ventilated) |
| Motor torque | QRD 60 PLUS: 650 Nm QRD 80 PLUS: 1,000 Nm |
| Weight | 97 kg. |
| Power | 290 W |
| Protection | IP 54 |
| Thermal range | -30ºC to 60ºC |
| Reducer | In oil bath |
| Maneuvering time | 9 seconds |
