TORNO HALL EG-SR COMPACT
Speed gates

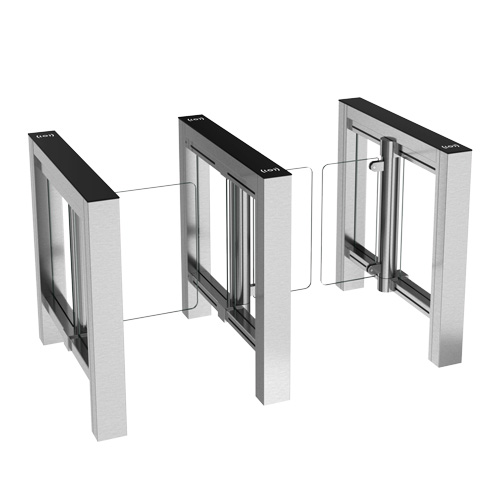

TORNO HALL EG-SR COMPACT

Compact design. Premium image. Safety and design in a single solution.

EG-SR COMPACT combines high security and curved design. Wide customization options, versions for one or two leaves, and abundant configurations for any need, especially in installations with limited space that require a high level of security and an attractive appearance at the same time.

Steel construction, possibility of integrating proximity devices. All these features make it the ideal solution for any flow path.

  • 2-year warranty
  • Suitable for indoor and outdoor use -(50° to 60°C)
Request information about this model View technical datasheet

Additional information

Compact design. Premium image. Safety and design in a single solution.

EG-SR COMPACT combines high security and curved design. Wide customization options, versions for one or two leaves, and abundant configurations for any need, especially in installations with limited space that require a high level of security and an attractive appearance at the same time.

Steel construction, possibility of integrating proximity devices. All these features make it the ideal solution for any flow path.

  • 2-year warranty
  • Suitable for indoor and outdoor use -(50° to 60°C)
Dimensions• Height: 990 mm. • Length: 1000 mm. • Width: 120 mm. • Height of the glass barrier: 835 mm. • Pitch: 650 mm. – 950mm. (max. 990 mm two-leaf version).
Standard equipment• Emergency Mode: automatic opening in the exit direction. • Fail Safe: safety unlocking due to power failure. • ID systems communication interface: USB, Ethernet, RS 485. • Fully electronic and bidirectional operation. • 13.8 V DC power input. Optional 24/230 V AC.
Materials and Finishes• Cabin and base: AISI 304 brushed steel. • Top cover: black glass (standard). • Glass sheet: 10 mm tempered safety glass. • Optional surface finishes: RAL and metallic colors (bronze, gold and silver). • Special coverings: stone, glass, wood and Corian©. • Top cover: colored glass, wood, stone and corian.
Options and accessories• Signaling equipment. • Slot for proximity reader integration. • Remote control. Button panel or touch screen. • Illumination of the glass leaf. LED frame. • Supercapacitor. Power in case of emergency.
Security• Detection of passage of more than one person. • Anti-fraud by overpass or underpass. • Electronic control to configure the security level against unwanted entry (RFID). • Up to 24 pairs of IR sensors.
