TORNO HALL EG-SPT
Speed gates

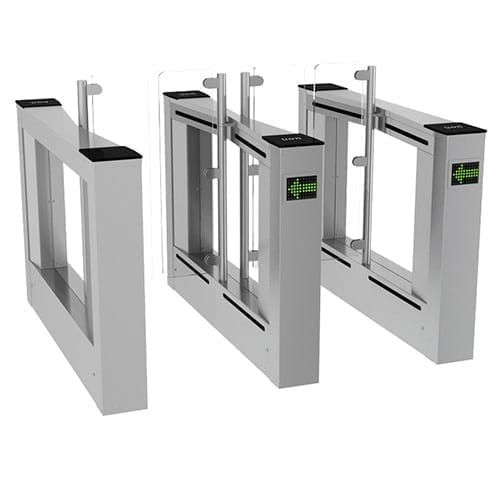

TORNO HALL EG-SPT

Many finishes. Curved and straight design. Designed for a high passing frequency.

EG-SPT is a turnstile with two elegant designs, straight and curved, and surprising customization. Versions for one or two leaves, and multiple configurations to adapt to any passage need. Its avant-garde image and high technology come together to guarantee comfortable, agile and safe access.

Steel construction, electronic and bidirectional operation, possibility of integrating proximity devices, complete set of high security sensors.

  • 2-year warranty.
Request information about this model View technical datasheet

Additional information

Many finishes. Curved and straight design. Designed for a high passing frequency.

EG-SPT is a turnstile with two elegant designs, straight and curved, and surprising customization. Versions for one or two leaves, and multiple configurations to adapt to any passage need. Its avant-garde image and high technology come together to guarantee comfortable, agile and safe access.

Steel construction, electronic and bidirectional operation, possibility of integrating proximity devices, complete set of high security sensors.

  • 2-year warranty.
Dimensions• Height: 999 mm. • Length: 1500 mm. • Width: 180 mm. • Standard height of the glass barrier: 800 mm. • Passage width: 550mm – 920 mm.
Standard equipment• Magnetic direct drive (MDD) motor. • Emergency Mode (manual or automatic opening using battery). • Fail Safe: safety unlocking due to power failure. • ID systems communication interface: USB, Ethernet, RS 485. • Fully electronic and bidirectional operation.
Materials and Finishes• Cabin and base: AISI 304 brushed steel. • Top cover: steel or colored glass as an option. • Glass sheet: 10 mm tempered safety glass.
Options and accessories• Optional surface finishes: RAL and metallic colors (bronze, gold and silver). • Top cover: glass with custom color. • Signaling equipment. • Slot for proximity reader integration. • Illumination of the glass leaf. LED frame. • Supercapacitor: Power in case of emergency. • Remote control panel: touch or digital. • USB or Ethernet adapter. • WAV file player. • Step ramp.
Security• Detection of passage of more than one person. • Anti-fraud by overpass or underpass. • Electronic control to configure the security level against unwanted entry (RFID). • Up to 24 pairs of IR sensors.
