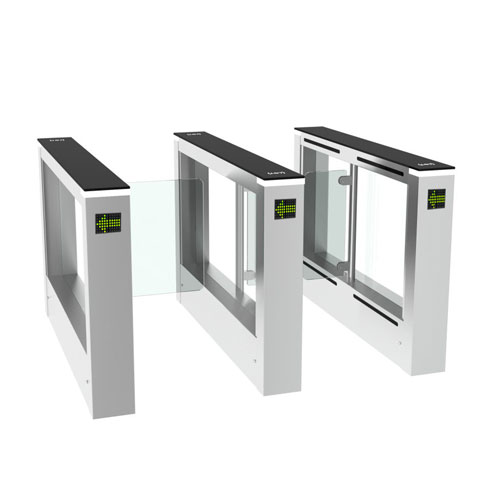

TORNO HALL EG-SPD/SPDR
Straight and curved design for public spaces. Integration of access accessories.
EG-SPD/SPDR is an access control turnstile available in straight and curved versions. Its elegant design and the possibility of integrating multiple accessories takes access control to a higher level. A multitude of finishes, versions for one or two leaves and abundant configurations to adapt to any passage need make it a unique solution. European manufacturing, steel construction, complete set of high security sensors... ideal for high passing frequencies.
Its patented magnetic motor increases the useful life up to 4 times longer than its direct competitors.
- Suitable for indoor use (operating temperature -25° to +50°C)
- 2-year warranty
Additional information
Straight and curved design for public spaces. Integration of access accessories.
EG-SPD/SPDR is an access control turnstile available in straight and curved versions. Its elegant design and the possibility of integrating multiple accessories takes access control to a higher level. A multitude of finishes, versions for one or two leaves and abundant configurations to adapt to any passage need make it a unique solution. European manufacturing, steel construction, complete set of high security sensors... ideal for high passing frequencies.
Its patented magnetic motor increases the useful life up to 4 times longer than its direct competitors.
- Suitable for indoor use (operating temperature -25° to +50°C)
- 2-year warranty
| Dimensions | • Height: 975 mm. • Length: 1500 mm. • Width: 180 mm. • Height of the glass barrier: 850 mm. • Pitch: 650 – 1150 mm. (max. for two-leaf version). |
|---|---|
| Standard equipment | • Emergency Mode: automatic or manual opening at the exit. • Fail Safe: safety unlocking due to power failure. • ID systems communication interface: USB, Ethernet, RS 485. • Electronic and bidirectional MDD motor. • 13.8 V DC power input. Optional: 24/230 V AC. |
| Materials and Finishes | • Cabin and base: AISI 304 brushed steel. • Top cover: black glass (standard). • Glass sheet: 10 mm tempered safety glass. |
| Options and accessories | • Multiple surface finishes (optional). • Top cover: glass and customizable materials. • Signaling equipment. • Slot for proximity reader integration. • Remote control. Button panel or touch screen. • Illumination of the glass leaf. LED frame. • Supercapacitor: Power supply in case of emergency. |
| Security | • Detection of passage of more than one person. • Anti-fraud by overpass or underpass. • Electronic control to configure the security level against unwanted entry (RFID). • Up to 36 pairs of IR sensors. |
