TORNO HALL EG-SG
Speed gates

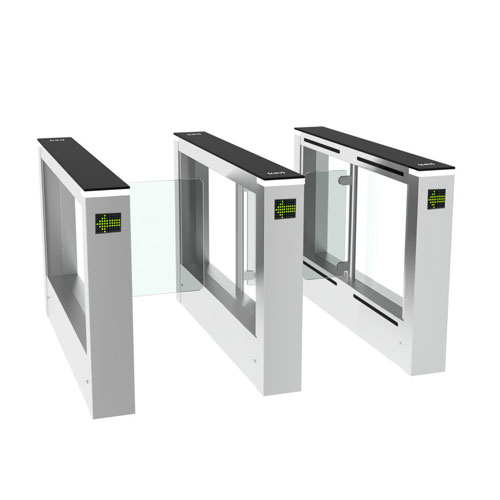

TORNO HALL EG-SG

Ideal solution for small spaces. Resistance, safety and comfort.

EG-SG is a steel hallway with a rounded design in reduced dimensions. Option of one or two sheets of glass per step. Simple, elegant, and with the latest technology for safe, fast and comfortable access, together with an exceptional finish that will provide a distinguished image to the environment where it is located.

Electronic operation, bidirectionality, multiple sensors, resistant. A turnstile suitable for any flow of passage.

  • 2-year warranty
  • Suitable for indoor and outdoor use (optional)
Request information about this model View technical datasheet

Additional information

Ideal solution for small spaces. Resistance, safety and comfort.

EG-SG is a steel hallway with a rounded design in reduced dimensions. Option of one or two sheets of glass per step. Simple, elegant, and with the latest technology for safe, fast and comfortable access, together with an exceptional finish that will provide a distinguished image to the environment where it is located.

Electronic operation, bidirectionality, multiple sensors, resistant. A turnstile suitable for any flow of passage.

  • 2-year warranty
  • Suitable for indoor and outdoor use (optional)
Dimensions• Height: 1040 mm. • Length: 1000 mm. • Width: 200 mm. • Height of the glass barrier: 900 mm. • Passage width: 550 – 1200 mm (two-leaf version).
Standard equipment• Emergency mode (manual or automatic opening using battery). • Fail Safe: safety unlocking due to power failure. • ID systems communication interface: USB, Ethernet, RS 485. • Fully electronic and bidirectional operation. • 13.8 V DC power input. Optional: 24/230 V AC.
Materials and Finishes• Cabin and base: AISI 304 brushed steel. • Top cover: Marble / corian / colored glass and wood (optional). • Glass sheet: 10mm tempered safety glass.
Options and accessories• Optional surface finishes: RAL and metallic colors: bronze, gold and silver. • Top cover: colored glass, wood, stone and corian. • Signaling equipment. • Slot for proximity reader integration. • Remote control. Button panel or touch screen. • Illumination of the glass leaf. LED frame.
Security• Detection of passage of more than one person. • Anti-fraud by overpass or underpass. • Electronic control to configure the security level against unwanted passage (RFID).
