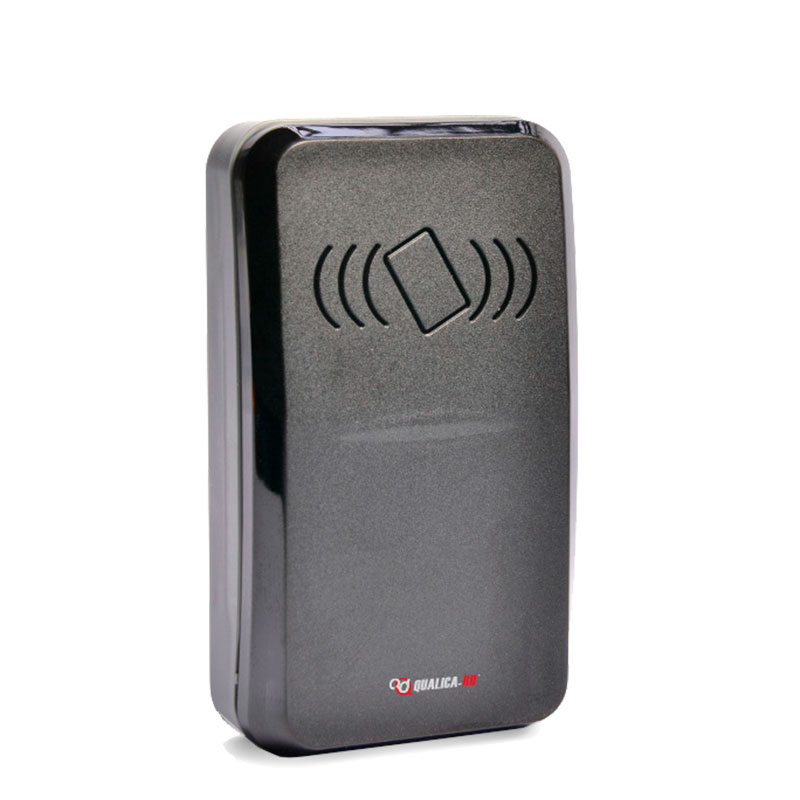

TARJETAS READER RFID OSDP™ COMPATIBLE IOS & ANDROID
RFID OSDP™ card reader compatible with IOS and Android
Qualica-RD SCR G2 is a small access reader for reading NFC smart card credentials. It uses the Open Supervised Device communication protocol through multipoint RS-485. Compatibility with EMV® digital access through NFC mobile wallet and contactless cards without applications or external service providers.
High security RFID reading options can be combined with legacy technologies to allow an easy upgrade path. The secure channel option provided by the OSDP™ offers end-to-end encryption, from the RFID credential to the access control system, including the RFID card reader.
- Valid for any of our access turnstiles
- 3-year warranty
Additional information
RFID OSDP™ card reader compatible with IOS and Android
Qualica-RD SCR G2 is a small access reader for reading NFC smart card credentials. It uses the Open Supervised Device communication protocol through multipoint RS-485. Compatibility with EMV® digital access through NFC mobile wallet and contactless cards without applications or external service providers.
High security RFID reading options can be combined with legacy technologies to allow an easy upgrade path. The secure channel option provided by the OSDP™ offers end-to-end encryption, from the RFID credential to the access control system, including the RFID card reader.
- Valid for any of our access turnstiles
- 3-year warranty
| Power, typical/min/max | 24VDC / 11VDC / 30VDC |
|---|---|
| Power consumption, typical/max at 24V | 20mA / 45mA |
| Box protection | IP65, IK10 |
| Operating temperature | -25°C to 70°C |
| LED band type | RGB |
| NET dimensions (L/W/H) | 76.5 * 45 * 20 mm |
| NET Weight | 46 g |
| Color | NCS 8500-N / NCS 6502-B |
| Communication | RS-485/OSDP™ |
| Reading distance | Up to 50 mm |
| Frequency range | 13.56 MHz |
| Compliance | CE, RoHS and CE, RoHS and REACH |
